Digital Surface Resistance Meter Tester
CLEARANCE SALE!
Tecman Digital Surface Resistance Tester Meter is simple to use. Just power on the instrument and clamp it onto the material to measure data. It features an LCD backlight and ambient temperature display.
It measures the resistance value on the surface of an object by placing two parallel electrodes close to the surface. This helps determine if the object is conductive, static, or insulating. The device can also measure the resistance to ground, making it ideal for various anti-static applications.
Features:
- Measures surface resistance and grounding resistance
- Measures ambient temperature
- High precision with compensation function
- Capable of measuring conductive, static, and insulating materials
- LCD backlight for easy and clear reading

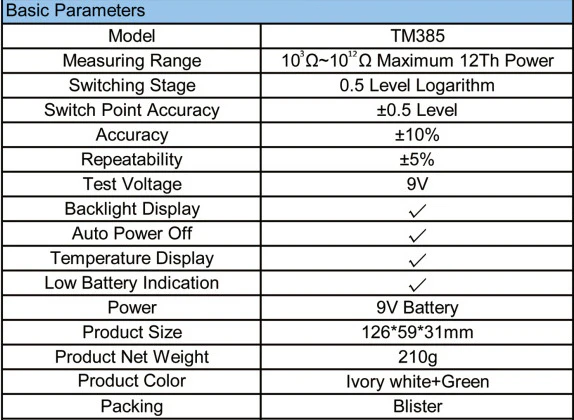

Specifications:
- Resistance Measuring Range: 10^3 - 10^12 ohms
- Repeat accuracy: +/- 5%
- Temperature measurement range: 0-50°C
- Repeat accuracy: +/- 2°C
- Measuring accuracy: +/- 10%
- Resistance measurement response time: 1 second
- Humidity: 0% - 70% non-condensing
- Operating temperature: 0-40°C
- Storage temperature: -10 to 70°C
- Power supply: 9V 6F22 (Included)
Original: $28.85
-65%$28.85
$10.10
Description
CLEARANCE SALE!
Tecman Digital Surface Resistance Tester Meter is simple to use. Just power on the instrument and clamp it onto the material to measure data. It features an LCD backlight and ambient temperature display.
It measures the resistance value on the surface of an object by placing two parallel electrodes close to the surface. This helps determine if the object is conductive, static, or insulating. The device can also measure the resistance to ground, making it ideal for various anti-static applications.
Features:
- Measures surface resistance and grounding resistance
- Measures ambient temperature
- High precision with compensation function
- Capable of measuring conductive, static, and insulating materials
- LCD backlight for easy and clear reading
Specifications:
- Resistance Measuring Range: 10^3 - 10^12 ohms
- Repeat accuracy: +/- 5%
- Temperature measurement range: 0-50°C
- Repeat accuracy: +/- 2°C
- Measuring accuracy: +/- 10%
- Resistance measurement response time: 1 second
- Humidity: 0% - 70% non-condensing
- Operating temperature: 0-40°C
- Storage temperature: -10 to 70°C
- Power supply: 9V 6F22 (Included)
